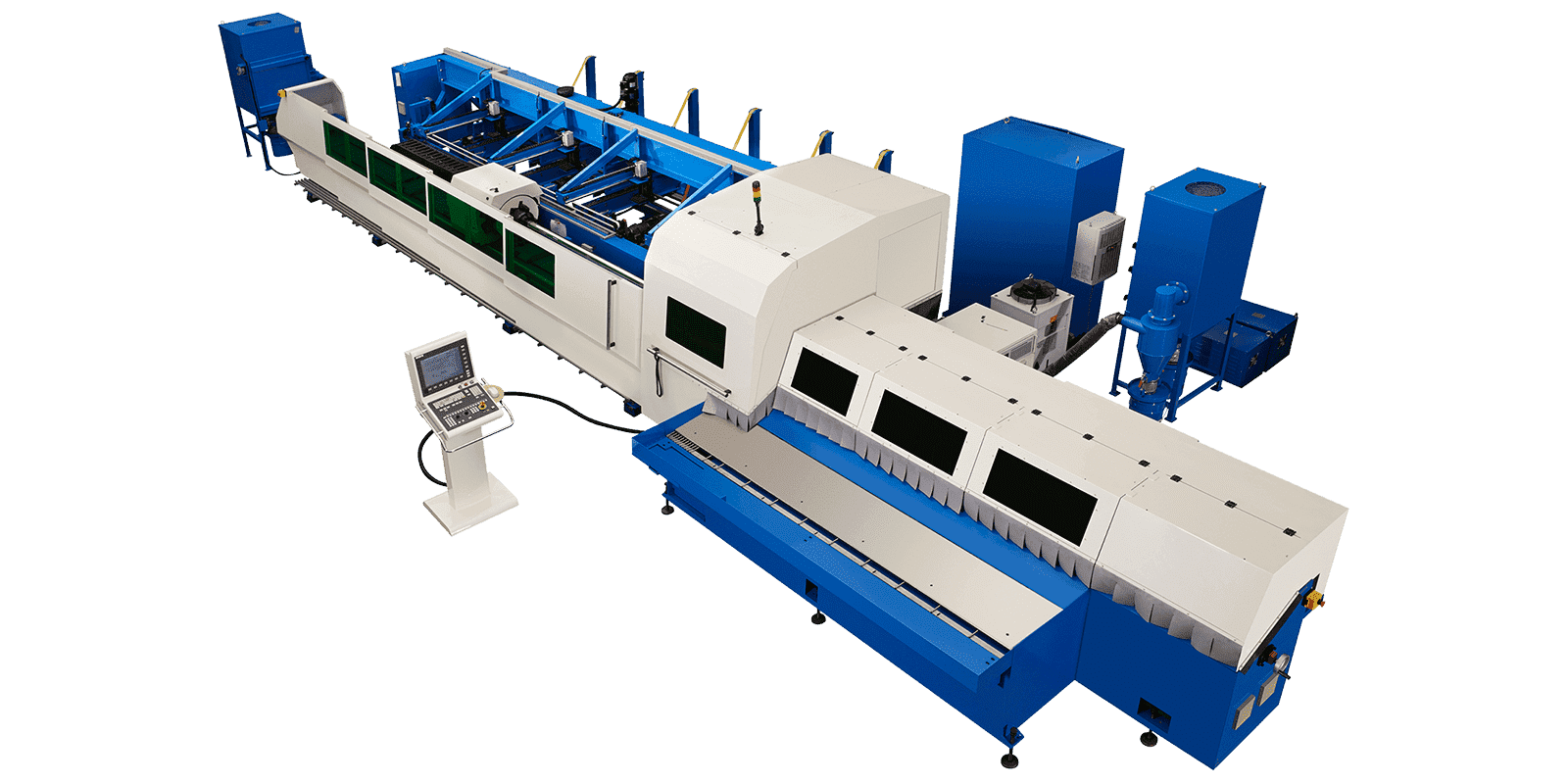

SOCO's SLT-152-FIBER-3D can cut round, square, rectangular, oval, and 50+ different tube and profile shapes. This multipurpose tube laser has extensive cutting capabilities such as straight and angle laser cutting, hole making, notching, and marking. High performance in Mild Steel, Stainless Steel, and Aluminum materials.

  • 3D Laser Tube Cutting Technology
  • Tube Laser capacity up to OD 152 mm
  • 45-90-45 Degrees Cutting
  • 2 kW Laser Source (standard) / 3 kW / 4 kW (optional)
  • Tube cutting lengths up to 3M / 4.5 M / 6M
  • Max. Wall thickness up to 6 mm / 9 mm
  • Automatic Bundle Loading System with Material Alignment
  • Multi-Axis CNC Controls with Touch Screen Interface
  • SOCO CAD-CAM system for Tubes and Profiles with built-in Nesting
  • SOCO i2 (Intelligent Interface) 3D CNC Controls
  • Tube laser cutting for round, square, rectangle, and 50+ profile shapes
  • Enclosed Workstation for maximum safety
  • Automatic Distance Control
  • Laser Resonator + Cutting Head Cooling
  • Vacuum Chip extraction systems
  • Scanning and Measuring of material before cutting
  • Compensation after measuring of material

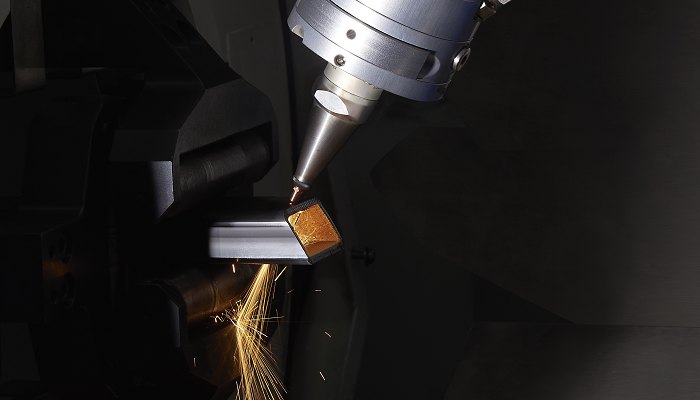

3D Fiber Laser Tube Cutting Technology
SLT-152-FIBER-3D cuts round, square, rectangular, oval, and 50+ different tube and profile shapes.

Typical Laser Cutting Processes:

  • Straight + Angle Cutting
  • Slotting
  • Marking
  • Notching
  • Hole Making

Fiber Laser Tube Cutting Machine Working Processes

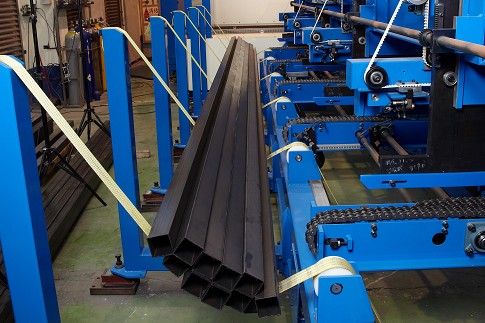

  • Automatic Tube Bundle Loading
  • Automatic Material Alignment
  • Automatic Feeding and Rotation
  • 3D Fiber Laser Tube Cutting
  • Unloading
Round Tube:Φ20 ~ Φ152 mm
Square Tube:20x20 ~ 120x120 mm
3D Bevel Cutting:-45° ~ +45
Rectengular Tube / Diagonal Length:20mm~170 mm
Other Tubes:Please Ask
Type: Ytterbium Fiber Laser
Manufacturer: IPG (GERMANY)
Nominal Power: 1 kW - 2kW - 3kW
Frequency: 5000Hz
Wavelength: 1070nm
Beam Quality: 5 mm x mRad
Polarization: Random

Manufacturer: Precitec (Germany)
Focus Position Adjustment Range: +3mm / -5mm
Capacitive Distance Sensor Sensitivity: <0.01mm
Maximum Auxiliary Gas Pressure: 20 bar
Cooling: Water + Air
Collimator Focal Distance: 150mm(other options are optional)

CAPACITY(Wall Thickness.) 1KW / 2KW / 3KW
Mild Steel 6 mm / 8 mm / 10 mm
Stainless Steel 4 mm / 6 mm / 8 mm
Aluminum Alloy 3 mm / 4 mm / 6 mm

One SOCO SLT-152-Fiber 3D Main Machine with 6 Electric Servos
One Feeding Unit with Rotating Unit (6500 mm )
One High Power Laser Rezenator (1kW – 2kW – 3kW)
One Laser Cutting Head; With automatic rangefinder sensor and quick lens changing system
One High Pressure Proportional Valve; For Auxiliary Gas
One 6500mm Loading Magazine (Bundle)
One Unloading Magazine with Two Outputs (3000 mm)
One Laser Resonator Cooling Unit
One Cutting Head Cooling Unit
One Smoke Extraction System
One Set of Auxiliary Cut-off Gas Connector
One Set Connector for Cooling System Gas
One Set Touch Screen CNC Control System
One SOCO-CAD Licensed
One Industrial Computer with High Capacity CF Card/ USB Connection/ Ethernet Interface
One IRMS system utility kit
One Set of Lens
One Set of Feed Axis Clamping Jaws (2x20-80mm; 1x75-152mm)
One Set of Tube Rotating Rollers (2x20-80mm; 1x75-152mm)
One Set Nozzle (Ø1.2-1.5-2.0) and 1 Protection Glass
