FEATURES

Maximum Stroke (mm): 10 ~ 600 mm
Maximum Cutting Length: 0 ~ 1800 mm (with 3 strokes)

Feeding Axis : Hydraulic
Saw Type and Diameter : Ø250 ~ 370 mm (HSS)
Cooling : Water based cooling

Machine Weight (kg.) : 1540 kgs
Dimensions (LxWxH) (cm) : 231 x 110 x 185 cm
Electrical Power Infrastructure: __ Voltage / __ Hz / 3 phase

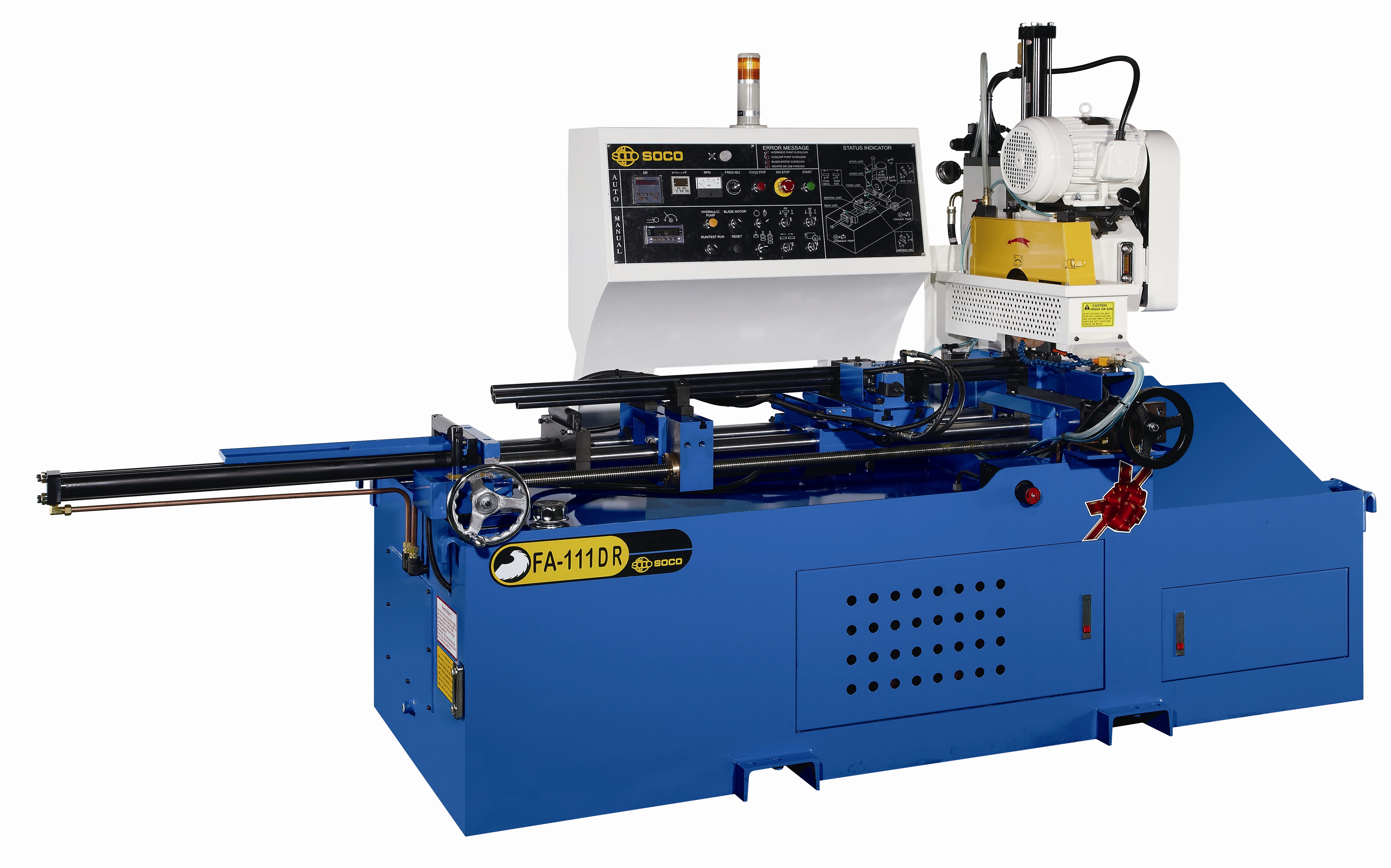

FA-111DR Automatic Circular Saw Cutting Machine

- Great results in cutting a wide variety of materials, from mild steels to high-strength steels, stainless steel and  copper materials

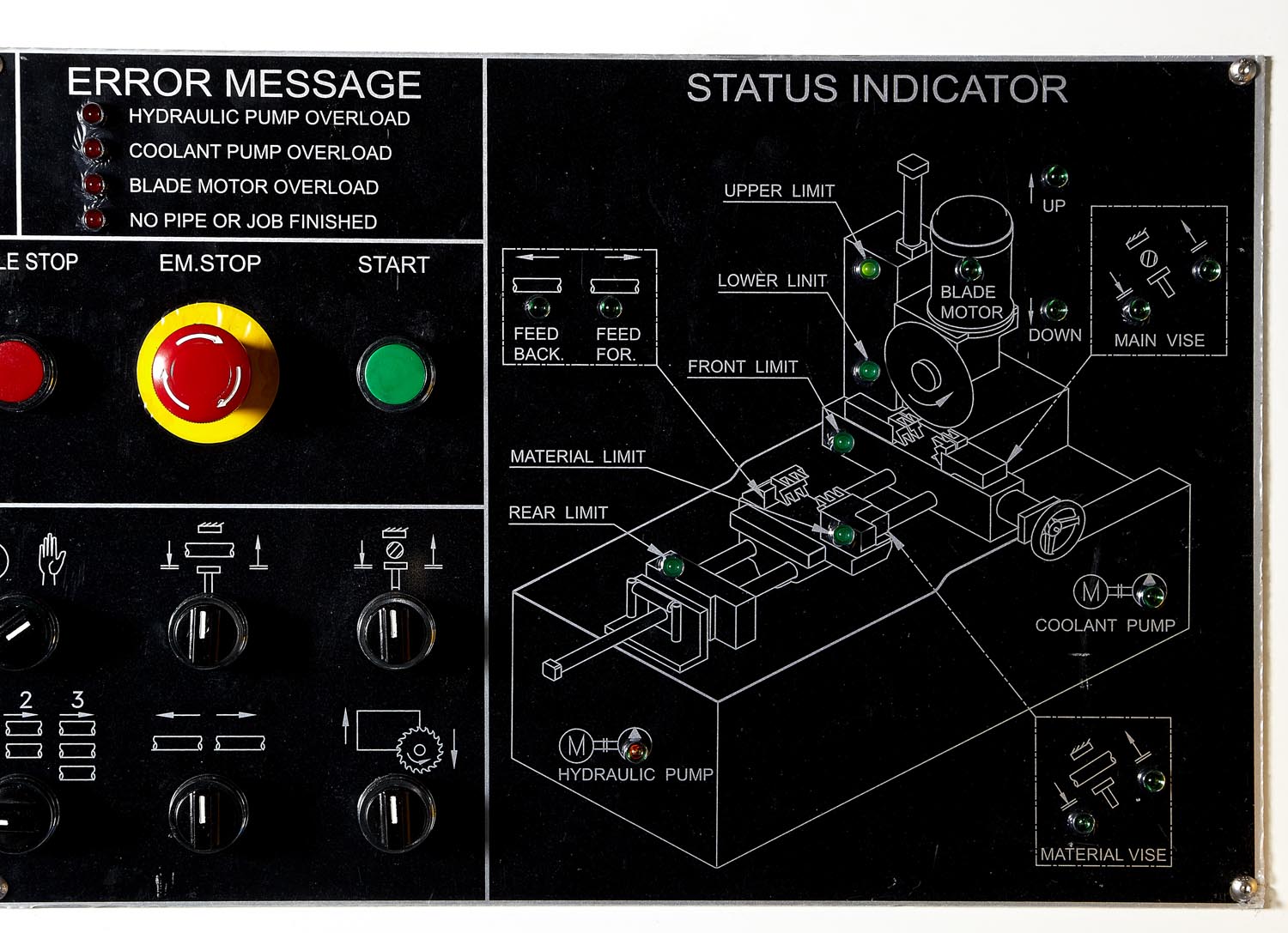

- Easy to use with PLC control circuit, user-friendly interface and error display control panel
- 90 Degree vertical moving cutting head provides powerful and high precision cuts
- Fully automatic hydraulic cutting, feeding and clamping movements
- SOCO patented gearbox eliminates the backlash and provides longer tool life.
- More sensitive material feeding by the patented feeding system, much safer material clamping wiyh to rigid main clamp
- Automatic lubrication system provides more ideal working conditions, circulating cooling system provides better surface quality
- Safer working with to saw protection electronic device and saw protection cover
- Piece setting, counting and automatic stop can be adjusted digitally
- Easy cleaning and maintenance with built-in chip box
- Easier tube feeding length adjustment by digital unit
- Maximum 600mm feeding at 3 strokes.

CAPACITY

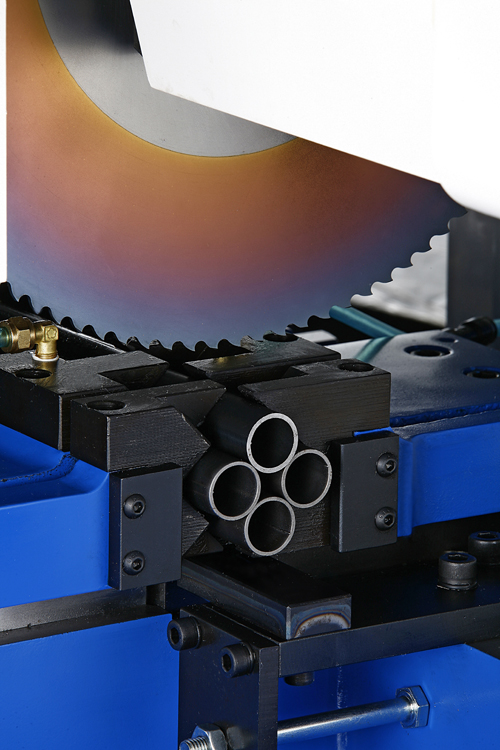

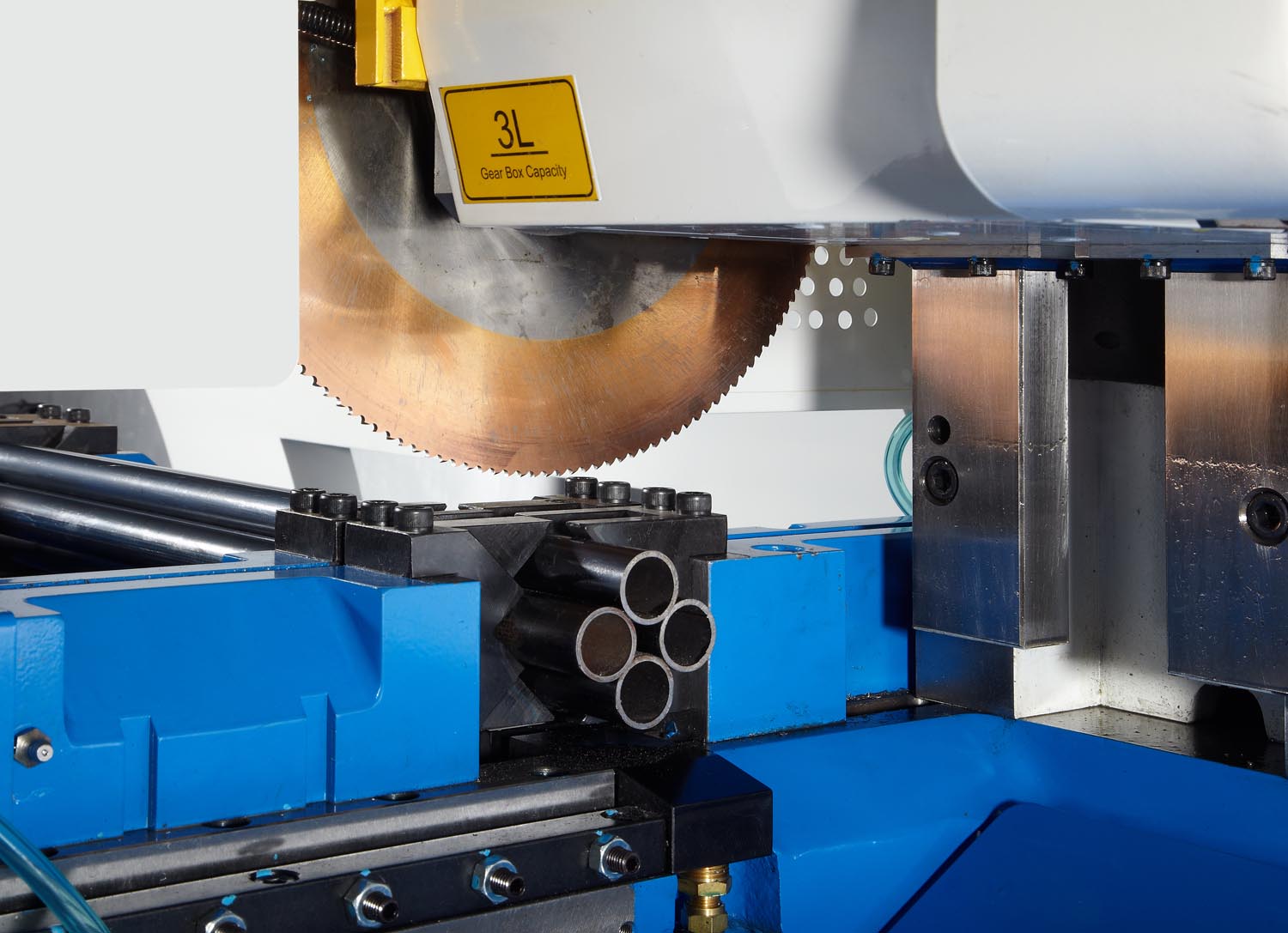

Round Tube≤ Ø 114mm
Round Solid≤ Ø 75mm
Square Tube110x110mm
Square Solid70x70mm
