With SOCO SLT-152-FIBER, multiple jobs such as straight and angle cutting, slotting, marking, notching, and hole making are possible in one single process. SLT-152-FIBER is a fully automatic tube laser system able to cut round, square, rectangular, oval, and 50+ different tube and profile shapes.
SOCO Tube Laser Cutting Systems bring the latest technology in tube and profile processing, ensuring high levels of automation, flexibility, and performance.
- Capacity up to OD 152 mm
- Cutting Lengths up to 3M / 4.5 M / 6M
- Wall thickness up to 6 mm (1 kW - Standard) / 9 mm (2 kW - optional)
- Automatic Bundle Loading System with Material Alignment
- Automatic Unloading System
- Equipped with 1 kW (Standard) or 2 kW (Optional) Laser Resonator
- Multi-Axis CNC Controls with Touch Screen Interface
- SOCO CAD-CAM system for Tubes and Profiles with built-in Nesting
- SOCO i2 (Intelligent Interface) 3D CNC Controls
- Cutting Round, Square, Rectangular, Oval, and 50+ different profile shapes

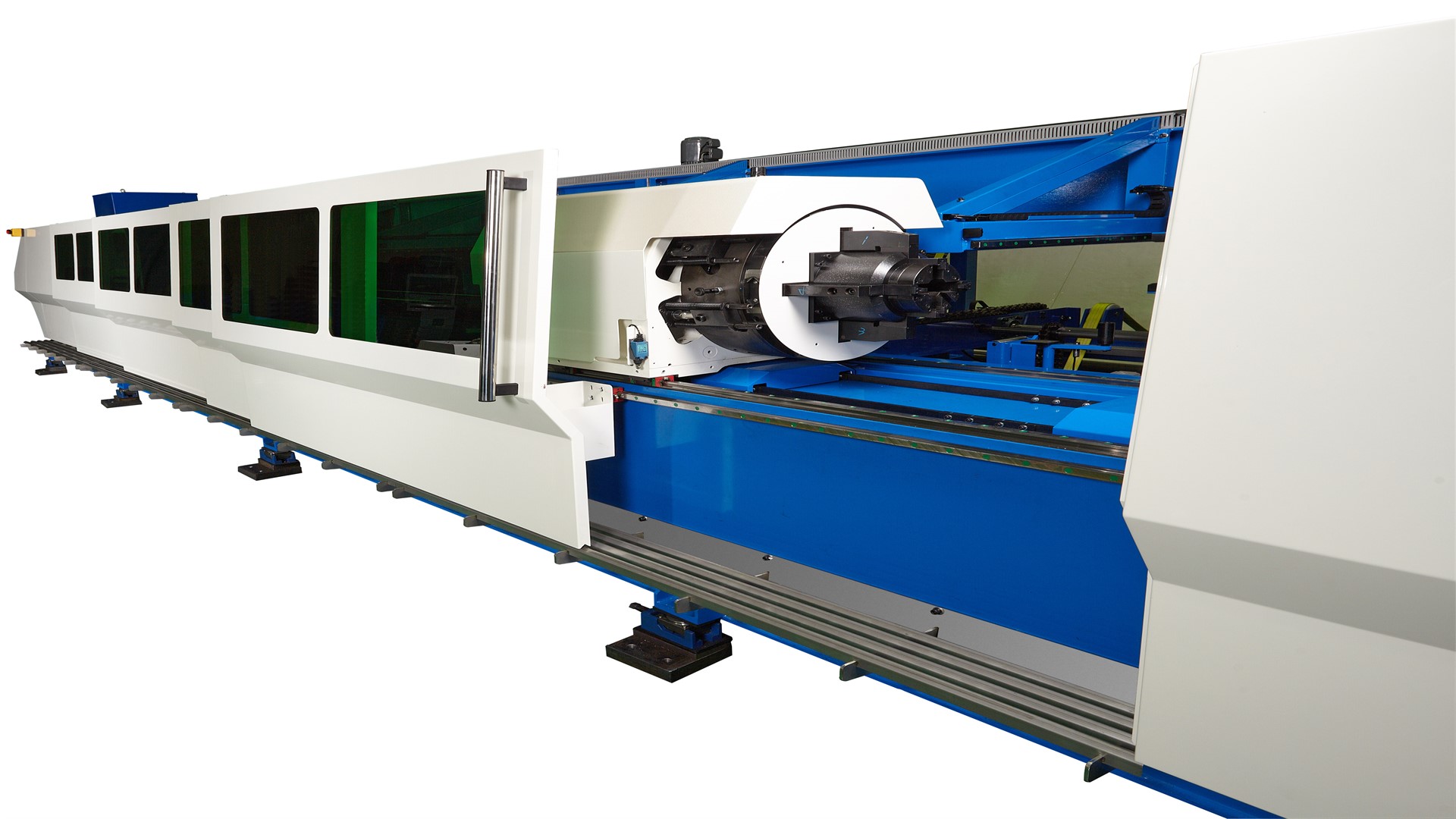

- Enclosed Workstation for maximum safety
- Automatic Distance Control
- Laser Resonator + Cutting Head Cooling
- Vacuum Chip Extraction System
- Material Scanning + Automatic Compensation
- Seam Detection (optional)
- Mandrel for Spatter extraction (optional)
Laser Tube Cutting for Various Shapes
- Round Tube
- Square Tube
- Rectangular Tube
- Oval Tubes
- L-shaped profiles
- C-shaped profiles
- Mild Steel, Stainless Steel, and Aluminum materials
Automation Working Processes
- 1. Automatic Tube Bundle Loading
- 2. Automatic Material Alignment
- 3. Automatic Feeding and Rotation
- 4. Fiber Laser Cutting
- 5. Unloading
Round Tube | : | Φ20 ~ Φ152 mm |
Square Tube | : | 20x20 ~ 120x120 mm |
Rectangular Tubes / Diagonal Length | : | 20mm~170 mm |
Other Tubes | : | Please Ask |
LASER
Type: Ytterbium Fiber Laser
Manufacturer: IPG (GERMANY)
Nominal Power: 1 kW - 2kW - 3kW
Frequency: 5000Hz
Wavelength: 1070nm
Beam Quality: 5 mm x mRad
Polarization: Random
CUTTING HEAD
Manufacturer: Precitec (Germany)
Focus Position Adjustment Range: +3mm / -5mm
Capacitive Distance Sensor Sensitivity: <0.01mm
Maximum Auxiliary Gas Pressure: 20 bar
Cooling: Water + Air
Collimator Focal Distance: 150mm(other options are optional)
CAPACITY (Wall Thickness.)1KW / 2KW / 3KW
Mild Steel 6 mm / 8 mm / 10 mm
Stainless Steel 4 mm / 6 mm / 8 mm
Aluminum Alloy 3mm / 4mm / 6mm
Type: Ytterbium Fiber Laser
Manufacturer: IPG (GERMANY)
Nominal Power: 1 kW - 2kW - 3kW
Frequency: 5000Hz
Wavelength: 1070nm
Beam Quality: 5 mm x mRad
Polarization: Random
CUTTING HEAD
Manufacturer: Precitec (Germany)
Focus Position Adjustment Range: +3mm / -5mm
Capacitive Distance Sensor Sensitivity: <0.01mm
Maximum Auxiliary Gas Pressure: 20 bar
Cooling: Water + Air
Collimator Focal Distance: 150mm(other options are optional)
CAPACITY (Wall Thickness.)1KW / 2KW / 3KW
Mild Steel 6 mm / 8 mm / 10 mm
Stainless Steel 4 mm / 6 mm / 8 mm
Aluminum Alloy 3mm / 4mm / 6mm
One SOCO SLT-152-Fiber Main Machine with 5 Axis Electric Servo
One Feeding Unit with Rotating Unit (6500 mm )
One High Power Laser Rezenator (1kW – 2kW – 3kW)
One Laser Cutting Head; With automatic rangefinder sensor and quick lens changer system
One High Pressure Proportional Valve; For Auxiliary Gas
One 6500mm Loading Magazine (Bundle)
One Unloading Magazine with Two Outputs (3000 mm)
One Laser Resonator Cooling Unit
One Cutting Head Cooling Unit
One Smoke Extraction System
One Set of Auxiliary Cut-off Gas Connector
One Set Connector for Cooling System Gas
One Set Touch Screen CNC Control System
One SOCO-CAD Licensed
One Industrial Computer with High Capacity CF Card/ USB Connection/ Ethernet Interface
One IRMS system utility kit
One Set of Lens
One Set of Feeding Axis Clamping Jaws (2x20-80mm; 1x75-152mm)
One Set of Tube Rotating Rollers (2x20-80mm; 1x75-152mm)
One Set Nozzle (Ø1.2-1.5-2.0) and 1 Protection Glass
One Feeding Unit with Rotating Unit (6500 mm )
One High Power Laser Rezenator (1kW – 2kW – 3kW)
One Laser Cutting Head; With automatic rangefinder sensor and quick lens changer system
One High Pressure Proportional Valve; For Auxiliary Gas
One 6500mm Loading Magazine (Bundle)
One Unloading Magazine with Two Outputs (3000 mm)
One Laser Resonator Cooling Unit
One Cutting Head Cooling Unit
One Smoke Extraction System
One Set of Auxiliary Cut-off Gas Connector
One Set Connector for Cooling System Gas
One Set Touch Screen CNC Control System
One SOCO-CAD Licensed
One Industrial Computer with High Capacity CF Card/ USB Connection/ Ethernet Interface
One IRMS system utility kit
One Set of Lens
One Set of Feeding Axis Clamping Jaws (2x20-80mm; 1x75-152mm)
One Set of Tube Rotating Rollers (2x20-80mm; 1x75-152mm)
One Set Nozzle (Ø1.2-1.5-2.0) and 1 Protection Glass
